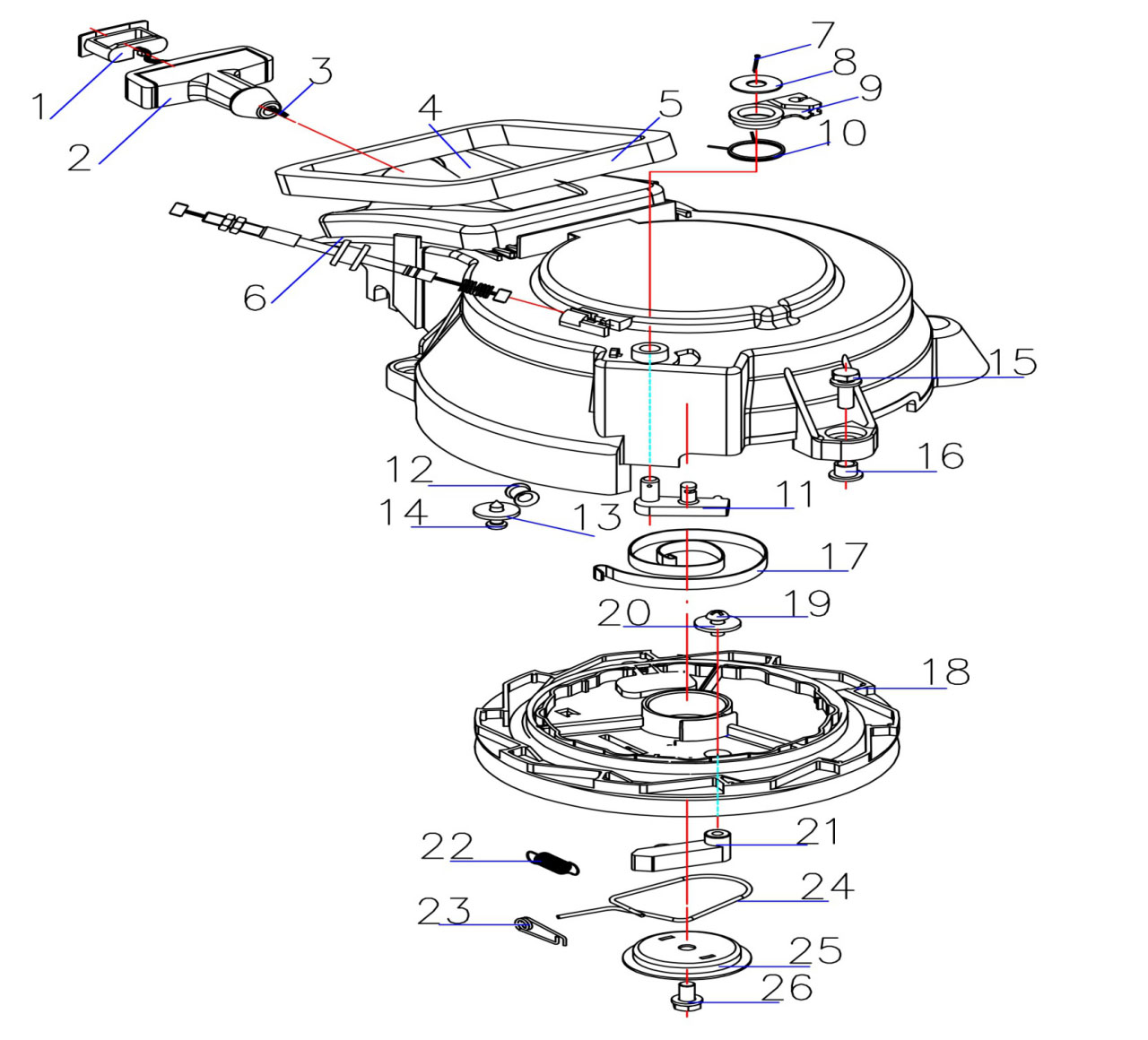

| CALON GLORIA T9.9 Starter | |||||
| REF NO. | PARTCODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T20-01.01.09 | cover,starter handle | 1 | 1 | 6G1-15779-00 |
| 2 | T20-01.01.08.00 | starter handle | 1 | 1 | 6G1-15755-00 |
| 3 | T15-01.01.17 | start rope φ5*2000MM | 1 | 2 | |
| 4 | T15-01.01.01.00 | starter case | 1 | 1 | 63V-15711-01 |
| 5 | T15-01.01.05 | damper，recoil starter | 1 | 1 | 63V-15762-00 |
| 6 | T15-01.01.16.00 | steel cable,brake | 1 | 1 | 63V-15770-01 |
| 7 | GB/T91 | split pin φ1.2X16 | 1 | 10 | 91490-16018 |
| 8 | T15-01.01.10 | Washer | 1 | 10 | 63V-15726-00 |
| 9 | T15-01.01.09 | fixed collar，steel cable | 1 | 2 | 63V-15748-00 |
| 10 | T15-01.01.08 | torsional spring,brake | 1 | 2 | 63V-15734-00 |
| 11 | T15-01.01.07 | brake | 1 | 2 | 63V-15794-00 |
| 12 | T15-01.01.02 | Scroll,start rope | 1 | 2 | 63V-15764-00 |
| 13 | GB/T5287 | plane washer 5 | 1 | 5 | |
| 14 | GB/T845 | screw,tapping ST4.2*12 | 1 | 4 | |
| 15 | GB/T9074.14 | bolt,with washer M6X20 | 3 | 10 | |
| 16 | T15-01.01.03 | collar | 3 | 3 | 90387-06M05 |
| 17 | T15-01.01.06 | volute spring | 1 | 2 | 63V-15713-00 |
| 18 | T15-01.01.04 | starter wheel | 1 | 2 | 63V-15714-00 |
| 19 | GB/T818 | screw, pan head M5*10 | 1 | 10 | |
| 20 | GB/T5287 | plane washer 5 | 1 | 10 | |
| 21 | T15-01.01.11 | drive arm | 1 | 1 | 63V-15741-00 |
| 22 | T15-01.01.12 | return spring | 1 | 2 | 63V-15767-01 |
| 23 | T15-01.01.13 | Spring,drive arm | 1 | 2 | 63V-15784-01 |
| 24 | T15-01.01.15 | spring, drive pawl | 1 | 2 | 63V-15705-01 |
| 25 | T15-01.01.14 | plate, drive | 1 | 1 | 63V-15716-00 |
| 26 | GB/T9074.14 | bolt,with washer M6X12 | 1 | 10 | |
| T15-01.01.00.00 | recoil starter | 1 | 1 | ||
| CALON GLORIA T9.9 Power System | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T15-01.03.16 | flywheel nut | 1 | 1 | 90170-12066 |
| 2 | GB/T97 | plane washer 12 | 1 | 10 | 90201-12472 |
| 3 | T15-01.03.15 | flywheel assy | 1 | 1 | 63V-85550-11 |
| 4 | GB/T9074.14 | bolt,with washer M6X35 | 2 | 4 | 90105-06M68 |
| 5 | T15-01.03.04 | coil,charge | 1 | 1 | 63V-85520-01 |
| 6 | T15-01.04.03 | cushion B | 2 | 2 | 90387-06M53 |
| 7 | T15-01.03.05 | coil,lighting | 1 | 1 | 63V-85533-00 |
| 8 | T15-01.04.02 | cushion A | 2 | 2 | 90387-06M24 |
| 9 | T15-01.03.01 | retainer,magneto base | 1 | 1 | 63V-41611-00 |
| 10 | GB/T818 | screw, pan head M5x12 | 2 | 4 | |
| 11 | T15-01.03.08 | Trigger | 1 | 1 | 63V-85580-01 |
| 12 | T15-01.03.07 | Assembley seat | 1 | 1 | |
| 13 | GB/T6170 | hexagon nut M5 | 2 | 4 | |
| 14 | GB/T91 | split pin 1.2x12 | 1 | 10 | 90468-10005 |
| 15 | T15-01.03.09 | Position clamp | 1 | 1 | 63V-41223-00 |
| 16 | T15-01.03.10 | L-bolt | 1 | 1 | 63V-41238-00 |
| 17 | GB/T6170 | hexagon nut M5 | 1 | 4 | 95380-05700 |
| 18 | T20-01.04.07 | joint-connection rod | 1 | 2 | 6H4-41237-00 |
| 19 | T15-01.06.25 | oil seal (upper),crankshaft | 1 | 2 | 93110-23M00 |
| 20 | T15-01.06.26 | Bearing cover | 2 | 2 | 63V-11445-00 |
| 21 | T15-01.06.28.00 | crankshaft assy | 1 | 1 | 63V-11400-01 |
| 22 | T15-01.06.29 | woodruff key,crankshaft | 1 | 4 | 90280-05013 |
| 23 | T15-01.06.27 | wahser | 1 | 2 | 90201-46M29 |
| 24 | T15-01.06.23 | O ring | 1 | 2 | 93210-46M16 |
| 25 | T15-01.06.21 | Oil seal (bottom),crankshaft | 2 | 2 | 93101-25018 |
| 26 | T15-01.06.22 | oil seal(upper),driveshaft | 2 | 2 | 93101-13018 |
| 27 | T15-01.06.20 | oil seal casing | 1 | 1 | 63V-15396-01-94 |
| 28 | GB/T9074.14 | bolt,with washer M6x16 | 1 | 2 | 97095-06016 |
| 29 | T15-05.00.12 | gasket, exhaust pipe | 1 | 2 | 63V-41133-A1 |
| 30 | T15-05.00.11 | exhaust pipe | 1 | 1 | 65F-41131-00-5B |
| 31 | GB/T9074.14 | bolt,with washer M6x20 | 5 | 10 | 97095-06020 |
| 32 | T15-05.00.13 | Damper, Exhaust pipe | 1 | 2 | 63V-41135-00 |
| 33 | GB/T9074.14 | bolt,with washer M6x20 | 2 | 10 | 97095-06018 |
| 34 | T15-01.03.12 | ignition coil A | 1 | 1 | 63V-85570-00 |
| 35 | T15-01.03.13 | ignition coil B | 1 | 1 | |
| 36 | T15-01.06.01.00 | cylinder,crank case | 1 | 1 | 63V-15100-02-1S |
| 37 | GB/T6170 | hexagon nut M8 | 1 | 2 | 95380-08600 |
| 38 | GB/T97 | plane washer 8 | 2 | 10 | |
| 39 | T15-01.07.03 | braket, fuel filter assy | 1 | 1 | 682-24566-01 |
| 40 | T20-01.07.05.00 | fuel filter assy | 1 | 1 | 61N-24560-00 |
| 41 | T15-01.07.02 | fuel pipe | 2 | 1 | 90445-09M00 |
| 42 | T20-01.07.03 | pipe clip 9 | 2 | 10 | 90467-08004 |
| 43 | GB/T9074.14 | bolt,with washer M6X12 | 1 | 10 | 97013-06010 |
| 44 | GB/T9074.14 | bolt,with washer M6x30 | 13 | 10 | 90119-06MA4 |
| 45 | T15-01.06.07 | nipple, hose | 1 | 1 | 676-11372-00 |
| 46 | T15-01.06.08 | Rubber water hose | 1 | 1 | 90445-09104 |
| 47 | T15-01.06.05 | exhaust cover,outer | 1 | 1 | 63V-41113-00-1S |
| 48 | T15-01.06.06 | exhaust cover gasket | 2 | 2 | 63V-41112-A0 |
| 49 | T15-01.06.04 | exhaust cover,inner | 1 | 1 | 63V-41111-00-1S |
| 50 | GB/T819 | screw, countersunk M5x15 | 1 | 10 | |
| 51 | T15-01.06.15 | anode | 1 | 1 | 682-11325-00 |
| 52 | T15-01.06.09 | Cylinder gasket | 1 | 2 | 63V-11181-A2 |
| 53 | T15-01.06.10 | cover,cylinder head | 1 | 1 | 6E7-11111-01-1S |
| 54 | GB/T16674 | bolt M7X35 | 11 | 10 | |
| 55 | T15-01.06.14 | spark plug | 2 | 2 | 94702-00217 |
| 56 | T20-01.06.37 | Thermostat(55±5°) | 1 | 1 | 6E5-12411-30 |
| 57 | T15-01.06.12 | washer, Thermostat | 1 | 2 | 90201-16M03 |
| 58 | T15-01.06.11 | sealing gasket,thermostat cap | 1 | 2 | 682-12414-A1 |
| 59 | T15-01.06.13 | thermostat cap | 1 | 1 | 682-12413-00-1S |
| 60 | GB/T9074.14 | bolt,with washer M6x20 | 4 | 10 | |
| 61 | T15-01.06.02 | cable | 1 | 1 | |
| 62 | GB/T9074.14 | bolt,with washer M6x10 | 1 | 10 | |
| 63 | T15-01.03.11 | CDI | 1 | 1 | 63V-85540-01 |
| 64 | GB/T9074.14 | bolt,with washer M6x20 | 2 | 10 | |
| 65 | T20-02.00.13 | locating pin φ6x12 | 2 | 10 | 93606-12019 |
| 66 | T15-01.06.16 | crankcase cover | 1 | 1 | |
| 67 | GB/T9074.14 | bolt,with washer M8x60 | 6 | 6 | |
| 68 | T15-01.06.19.00 | inlet valve assy | 1 | 1 | 63V-13610-10 |
| 69 | GB/T9074.14 | bolt,with washer M6x20 | 3 | 10 | |
| 70 | T15-01.02.07.00 | carburetor assy | 1 | 1 | 63V-14301-00 |
| 71 | T15-01.02.03 | bushing | 2 | 2 | 90387-06M15 |
| 72 | T15-01.02.02 | O ring, air silencer assy | 1 | 2 | 93210-35M86 |
| 73 | T15-01.02.01.00 | air silencer assy | 1 | 1 | 63V-14440-00 |
| 74 | GB/T9074.14 | bolt,with washer M6X115 | 2 | 4 | |
| 75 | T15-01.02.04 | rubber plug | 1 | 2 | 90480-12M25 |
| 76 | T15-01.02.05 | choke lever | 1 | 1 | 63V-41252-00 |
| 77 | T15-01.02.06 | joint-connection rod | 1 | 1 | 661-41262-02 |
| 78 | T15-01.04.11 | rod, carburetor | 1 | 2 | 63V-41257-00 |
| 79 | GB/T5287 | plane washer 5 | 1 | 4 | 90201-05M09 |
| 80 | GB/T845 | screw,tapping ST4.8x16 | 1 | 4 | 90164-05M03 |
| 81 | T15-01.04.01 | bracket | 1 | 1 | 63V-14497-02 |
| 82 | T15-01.04.10 | rubber position block | 1 | 2 | 689-44194-00 |
| 83 | T15-01.04.02 | Spring A | 1 | 2 | 90508-16M37 |
| 84 | T15-01.04.05 | Magneto lever | 1 | 2 | 63V-41631-00 |
| 85 | GB/T818 | screw, pan head M6x30 | 1 | 10 | |
| 86 | T15-01.04.06 | spring | 1 | 2 | 90501-12M16 |
| 87 | GB/T6170 | hexagon nut M6 | 1 | 10 | |
| 88 | T15-01.04.07 | Cap screw | 1 | 4 | 688-44194-00 |
| 89 | T15-01.04.03 | Spring B | 1 | 5 | 90508-20M38 |
| 90 | T15-01.04.09 | Throttle lever fixer | 1 | 2 | 63V-41283-01 |
| 91 | T15-01.04.08 | Cable Fixer | 1 | 1 | 63V-41638-00 |
| 92 | T15-01.04.04 | sleeve | 1 | 2 | 90387-06M50 |
| 93 | GB/T9074.14 | bolt,with washer M6x65 | 1 | 5 | |
| 94 | GB/T9074.14 | bolt,with washer M6x10 | 1 | 10 | |
| 95 | T20-01.04.05 | pin | 1 | 2 | |
| 96 | T15-01.05.12 | link,shift rod | 1 | 1 | |
| 97 | T15-01.05.01.00 | lever,shift rod | 1 | 1 | 63V-44123-01 |
| 98 | T15-01.05.04 | shift rod(upper) | 1 | 1 | 63V-44143-01 |
| 99 | T15-01.05.03 | fixed block,shift rod lever | 1 | 2 | 63V-44122-01 |
| 100 | T15-01.06.17 | stopper plate,shift lever | 1 | 2 | 63V-44116-00 |
| 101 | GB/T9074.14 | bolt,with washer M6x12 | 1 | 10 | |
| 102 | T15-01.05.05.00 | gear position | 1 | 2 | 63V-44125-00 |
| 103 | GB/T97 | plane washer 5 | 3 | 10 | |
| 104 | GB/T818 | screw, pan head M5x12 | 3 | 10 | |
| 105 | T15-01.05.02 | gear shift arm | 1 | 1 | 63V-44122-01 |
| 106 | T15-01.02.06 | joint-connection rod | 1 | 2 | 661-41262-02 |
| 107 | T15-01.05.11 | spring,cable | 1 | 2 | 90508-08M39 |
| 108 | T15-01.05.07 | cable block | 1 | 2 | 63V-15746-10 |
| 109 | T15-01.02.06 | joint-connection rod | 1 | 2 | 661-41262-02 |
| 110 | T15-01.05.10 | swing arm level | 1 | 2 | 6L2-15747-00 |
| 111 | T15-01.05.09 | bushing | 1 | 2 | 90387-06M06 |
| 112 | GB/T9074.14 | bolt,with washer M6x20 | 1 | 10 | |
| 113 | GB/T9074.14 | bolt,with washer M6x40 | 2 | 10 | |
| 114 | T20-01.06.02 | L-nipple | 2 | 2 | 650-14485-03 |
| 115 | T15-01.06.03 | rubber pipe | 2 | 2 | 90445-07M08 |
| 116 | T20-01.06.04 | pipe clip 7 | 4 | 10 | 90467-06016 |
| 117 | T20-01.06.03 | nipple | 2 | 2 | |
| 118 | T15-01.04.11 | level，carburetor | 1 | 2 | |
| 119 | T15-01.02.06 | joint-connection rod | 1 | 2 | 661-41262-02 |
| 120 | T15-01.05.06 | throttle shaft | 1 | 2 | 63V-41211-00 |
| 121 | GB/T848 | plane washer 6 | 1 | 10 | |
| 122 | T15-01.06.24 | gasket,engine base | 1 | 2 | 63V-45113-A1 |
| T15 | Power system assy | 1 | |||
| CALON GLORIA T9.9 Bracket | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T20-03.00.01 | Clamp nut | 2 | 2 | 90185-22043 |
| 2 | T15-03.00.02 | plate,clamp bracket | 1 | 1 | 6J8-43113-01 |
| 3 | T15-03.00.01 | stud bolt | 1 | 1 | 63W-43131-01 |
| 4 | T15-03.01.01 | clamp bracket(left) | 1 | 1 | 63V-43112-07-4D |
| 5 | T15-00.00.05 | cable connector | 1 | 1 | 66M-82148-00 |
| 6 | GB/T818 | screw, pan head M6x12 | 1 | 10 | 97885-06008 |
| 7 | T20-03.00.04 | nylon gasket | 2 | 2 | 90202-22M54 |
| 8 | T20-03.00.05 | bushing,bracket bolt | 2 | 2 | 90386-22M94 |
| 9 | T15-03.01.03 | bolt | 4 | 4 | 90109-06M84 |
| 10 | T15-03.01.04 | brake pad | 2 | 2 | 63V-43181-00 |
| 11 | T20-03.01.04 | pad,transom clamp | 2 | 2 | 648-43114-01 |
| 12 | T15-03.01.02 | screw,transom clamp | 2 | 2 | 6E7-43116-00 |
| 13 | GB/T1015 | pin φ4x18 | 2 | 4 | 90243-04M01 |
| 14 | T20-03.01.02 | handle,transom clamp | 2 | 2 | 6E0-43118-01 |
| 15 | T15-03.00.04 | Sleeve | 1 | 2 | 90387-06M13 |
| 16 | T15-03.00.03 | bolt | 1 | 2 | 90101-06M29 |
| 17 | T15-03.05.00 | trim rod | 1 | 1 | 689-43160-00 |
| 18 | GB/T9074.14 | bolt,with washer M6x40 | 1 | 10 | 90119-06M05 |
| 19 | T15-01.05.15 | cushion, shift handle | 1 | 2 | 90387-06M86 |
| 20 | T15-01.05.14 | wave washer,shift handle | 1 | 2 | 90206-15M18 |
| 21 | T15-01.05.13 | shift handle | 1 | 2 | 63V-44111-02 |
| 22 | T15-01.05.12 | connector, shift handle | 1 | 2 | 63V-44124-02 |
| 23 | T15-03.04.01.00 | steering shaft | 1 | 1 | 63V-42511-04-4D |
| 24 | T15-03.04.02 | antifriction plate,steering | 1 | 1 | 90209-40008 |
| 25 | T15-03.04.03 | fixer, bracket | 1 | 2 | 65F-42537-00 |
| 26 | T15-03.02.17 | friction plate，bracket | 1 | 2 | 63V-42528-00 |
| 27 | T15-03.02.18 | sealing sleeve | 1 | 2 | 689-43373-01 |
| 28 | GB/T9074.14 | bolt,with washer M6x20 | 1 | 10 | 90105-06M07 |
| 29 | T15-03.02.03 | sleeve, tilt handle | 1 | 2 | 90387-07M07 |
| 30 | T15-03.02.04 | antifriction plate,tilt handle | 1 | 10 | 90202-07M60 |
| 31 | T15-03.02.02.00 | tilt lever assy | 1 | 1 | 66M-43630-01 |
| 32 | T20-03.02.18 | rubber sleeve | 1 | 2 | 682-43318-01 |
| 33 | T15-03.02.01 | swivel bracket | 1 | 1 | 63V-43311-03-4D |
| 34 | GB/T818 | screw, pan head M8x10 | 2 | 4 | 97885-08010 |
| 35 | T15-03.02.12 | axle, tilt handle spring | 1 | 1 | 66R-43611-00 |
| 36 | T15-03.02.07 | antifriction plate, bracket | 1 | 2 | 90386-07M95 |
| 37 | T15-03.02.09 | receiver assy | 1 | 1 | 66M-43350-01 |
| 38 | GB/T896 | E-ring 5 | 1 | 10 | 93430-04M03 |
| 39 | T15-03.02.05 | tilt fixer | 1 | 1 | 63V-43641-01 |
| 40 | GB/T896 | E-ring 4 | 1 | 10 | 99080-05600 |
| 41 | T15-03.02.06 | spring tension | 1 | 1 | 90507-20M00 |
| 42 | GB/T818 | screw, pan head M5*6 | 1 | 5 | 90157-05014 |
| 43 | T15-03.02.10 | rod,tilt lock | 1 | 2 | 66R-43617-00 |
| 44 | T15-03.02.08 | pin | 1 | 2 | 63V-43659-00 |
| 45 | T15-03.02.11 | tension spring,angle locating bracket | 1 | 1 | 63V-43656-00 |
| 46 | T15-03.02.13 | inner bracket | 1 | 1 | 63V-43614-10 |
| 47 | T15-03.02.14 | outer bracket | 1 | 1 | 66R-43615-00 |
| 48 | GB/T896 | E-ring 4 | 1 | 10 | 99080-05600 |
| 49 | T15-03.02.15 | shaft,tilt lock | 1 | 2 | 66R-43611-00 |
| 50 | GB/T896 | E-ring 4 | 1 | 10 | 93430-04M03 |
| 51 | JB/T7940.1 | straight grease nipple M6 | 1 | 2 | 93700-06M03 |
| 52 | T20-00.00.07 | cable connector | 1 | 2 | 63V-82127-00 |
| 53 | T15-03.04.04 | inner bushing,steering shaft | 1 | 2 | 90386-30048 |
| 54 | T15-03.04.05 | O ring,steering shaft | 1 | 2 | 93210-29M94 |
| 55 | T15-03.04.06 | antifriction plate, bracket | 1 | 2 | 90386-30M60 |
| 56 | GB/T6177 | screw M6 | 4 | 10 | 90179-06M28 |
| 58 | T15-00.00.01 | damper cover | 1 | 1 | 63V-44551-01-4D |
| 59 | T15-00.00.02 | damping block B | 2 | 2 | 682-44555-00 |
| 60 | T15-00.00.03 | damping block A | 1 | 2 | 63V-44557-00 |
| 61 | T20-00.00.07 | cable connector | 1 | 1 | 63V-82127-00 |
| 62 | GB/T9074.14 | bolt,with washer M6x75 | 2 | 4 | 97075-06075 |
| 63 | GB/T9074.14 | bolt,with washer M6x55 | 2 | 4 | 97075-06055 |
| 64 | T15-03.03.01 | clamp bracket(right) | 1 | 1 | 63V-43111-06-4D |
| 65 | GB/T889 | nut, self locking M6 | 1 | 5 | 95380-06700 |
| 66 | GB/T97 | plane washer 6 | 1 | 10 | 92995-06600 |
| 67 | T15-03.02.16 | torsional spring | 1 | 2 | 90508-18M41 |
| T15-03.00.00.00 | Clamp bracket | 1 | |||
| CALON GLORIA T9.9 Steering | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T20-04.00.01 | rubber sleeve, handle | 1 | 1 | 6G1-42177-00 |
| 2 | GB/T820 | screw,countersunk M5x25 | 1 | 10 | 90149-05M13 |
| 3 | T20-04.00.02 | grip,steering handle | 1 | 1 | 664-42119-00 |
| 4 | GB/T845 | screw,tapping ST2.2X4.5 | 1 | 10 | |
| 5 | T20-04.00.03 | throttle label | 1 | 1 | |
| 6 | GB/T97 | plane washer 10 | 2 | 10 | 92903-10600 |
| 7 | T20-04.00.04 | compression spring | 1 | 1 | 90501-23215 |
| 8 | T20-04.00.05 | bushing | 1 | 1 | 90386-08032 |
| 9 | T15-04.01.00 | throttle lever | 1 | 1 | 6G1-42138-01 |
| 10 | T15-04.00.06 | throttle cable | 2 | 2 | 6L2-26301-01 |
| 11 | T15-04.00.01 | steering handle | 1 | 1 | 63V-42111-01-4D |
| 12 | T15-04.00.02 | resistance adjusting knob | 1 | 1 | 6G1-42125-01 |
| 13 | T15-04.00.03 | Latch segment | 1 | 2 | 6G1-42126-00 |
| 14 | GB/T91 | split pin φ1.2X12 | 1 | 10 | |
| 15 | T15-04.00.05 | emergency stop switch | 1 | 1 | 65W-82575-01 |
| 16 | GB/T818 | screw, pan head M5x10 | 2 | 2 | 97885-05012 |
| 17 | T15-04.00.04 | plate, throttle level | 1 | 1 | 6E0-42159-02 |
| 18 | T15-04.00.07 | Bushing (long) | 1 | 1 | 90386-34M97 |
| 19 | T15-04.00.08 | wave washer | 1 | 2 | 90206-36M21 |
| 20 | T15-04.00.09 | gasket | 1 | 2 | 90202-36M55 |
| 21 | T15-04.00.12 | stud bolt | 2 | 2 | 90116-08016 |
| 22 | T15-04.00.10 | bushing (short) | 1 | 2 | 90386-33M96 |
| 23 | T15-04.00.11 | plate,steering handle | 1 | 1 | 6G1-42131-02 |
| 24 | GB/T889 | nut, self locking M8 | 1 | 2 | 90185-08057 |
| T15-04.00.00.00 | steering handle assy | 1 | |||
| CALON GLORIA T9.9 Bottom Cowling | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T20-02.00.12 | locking handle | 1 | 1 | |
| 2 | T20-02.00.10 | locking handle shaft | 2 | 2 | |
| 3 | GB/T91 | split pin φ1.2X12 | 2 | 10 | |
| 4 | T20-02.00.11 | handle connector | 1 | 1 | |
| 5 | T20-02.00.09 | locking handle bracket | 1 | 1 | |
| 6 | GB/T9074.14 | bolt,with washer M6X12 | 1 | 10 | |
| 7 | T15-02.00.01 | cowling,bottom | 1 | 1 | |
| 8 | T15-02.00.10 | water nozzle | 1 | 1 | 6BL-44391-00 |
| 9 | T15-02.00.09 | grommet | 2 | 2 | 6G1-42748-00 |
| 10 | T15-02.00.11 | bushing, damping | 4 | 4 | 90387-06034 |
| 11 | T15-02.00.12 | cushion | 4 | 4 | 90480-15M31 |
| 12 | T15-02.00.15 | circlip | 1 | 1 | 90465-25M57 |
| 13 | T15-02.00.14 | grommet,gear shifting linkage | 1 | 1 | 682-42727-00 |
| 14 | T15-02.00.13 | grommet,water hose | 2 | 2 | |
| 15 | T15-02.00.05 | protecting bush gasket, choke | 1 | 1 | 6J8-41274-00 |
| 16 | T15-02.00.06 | protecting bush, choke | 1 | 1 | 689-41273-00 |
| 17 | T15-02.00.08 | Connector,choke | 1 | 1 | |
| 18 | T15-02.00.07 | pull rod,choke | 1 | 1 | 6H4-41271-01 |
| 19 | T15-02.00.03 | grommet,throttle cable | 1 | 1 | 682-42724-00 |
| 20 | T15-02.00.04 | grommet,battery cable | 1 | 1 | 682-42725-02 |
| 21 | T15-02.00.02 | grommet,handle connceting rod | 1 | 1 | 63V-42726-00 |
| 22 | T20-01.07.02 | rubber sleeve,fuel hose joint | 1 | 1 | |
| 23 | T20-01.07.01.00 | fuel hose joint assy. | 1 | 1 | 6G1-24304-02 |
| 24 | T15-01.07.01 | bracket, fuel connector | 1 | 1 | 63V-24396-01 |
| 25 | GB/T9074.14 | bolt,with washer M6x30 | 1 | 2 | |
| 26 | T20-01.07.03 | pipe clip 9 | 1 | 10 | |
| 27 | T15-01.07.02 | fuel pipe | 1 | 1 | |
| 28 | GB/T9074.14 | bolt,with washer M6x25 | 4 | 4 | |
| T15-02.00.00.00 | cowling,bottom | 1 | 1 | ||
| CALON GLORIA T9.9 Crankshaft Piston | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T15-01.06.28.00 | crank shaft | 1 | 1 | 63V-11400-01 |
| 2 | T15-01.06.28.16 | needle bearing plate | 4 | 1 | 90201-14377 |
| 3 | T20-01.06.10 | needle bearing | 50 | 50 | 93602-14104 |
| 4 | T15-01.06.28.15 | circlip, piston pin | 4 | 4 | 93450-15023 |
| 5 | T15-01.06.28.14 | piston pin | 2 | 2 | 634-11633-00 |
| 6 | T15-01.06.28.11 | piston | 2 | 2 | 6E7-11631-00-97 |
| 7 | T15-01.06.28.13 | piston ring 2nd | 2 | 2 | 682-11610-01 |
| 8 | T15-01.06.28.12 | piston ring 1st | 2 | 2 | |
| CALON GLORIA T9.9 Top Cowling | ||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC |
| 1 | T15-07.00.01 | top cowling | 1 | 1 |
| 2 | GB/T818 | screw, pan head M4x14 | 2 | 10 |
| 3 | GB/T97 | plane washer 4 | 2 | 10 |
| 4 | T15-07.00.03 | front locking hook | 1 | 1 |
| 5 | GB/T6170 | hexagon nut M4 | 2 | 2 |
| 6 | GB/T889 | nut, self locking M4 | 2 | 2 |
| 7 | T20-07.00.06 | plate,rear locking hook | 1 | 1 |
| 8 | T20-07.00.05 | rear locking hook | 1 | 1 |
| 9 | GB/T97 | plane washer 4 | 2 | 10 |
| 10 | GB/T818 | screw, pan head M4x14 | 2 | 10 |
| 11 | T15-07.00.02 | rubber sealing strip | 1 | 1 |
| 12 | T20-07.00.03 | bingding nail | 25 | 50 |
| T15-07.00.00.00 | top cowling assembly | 1 | 1 | |

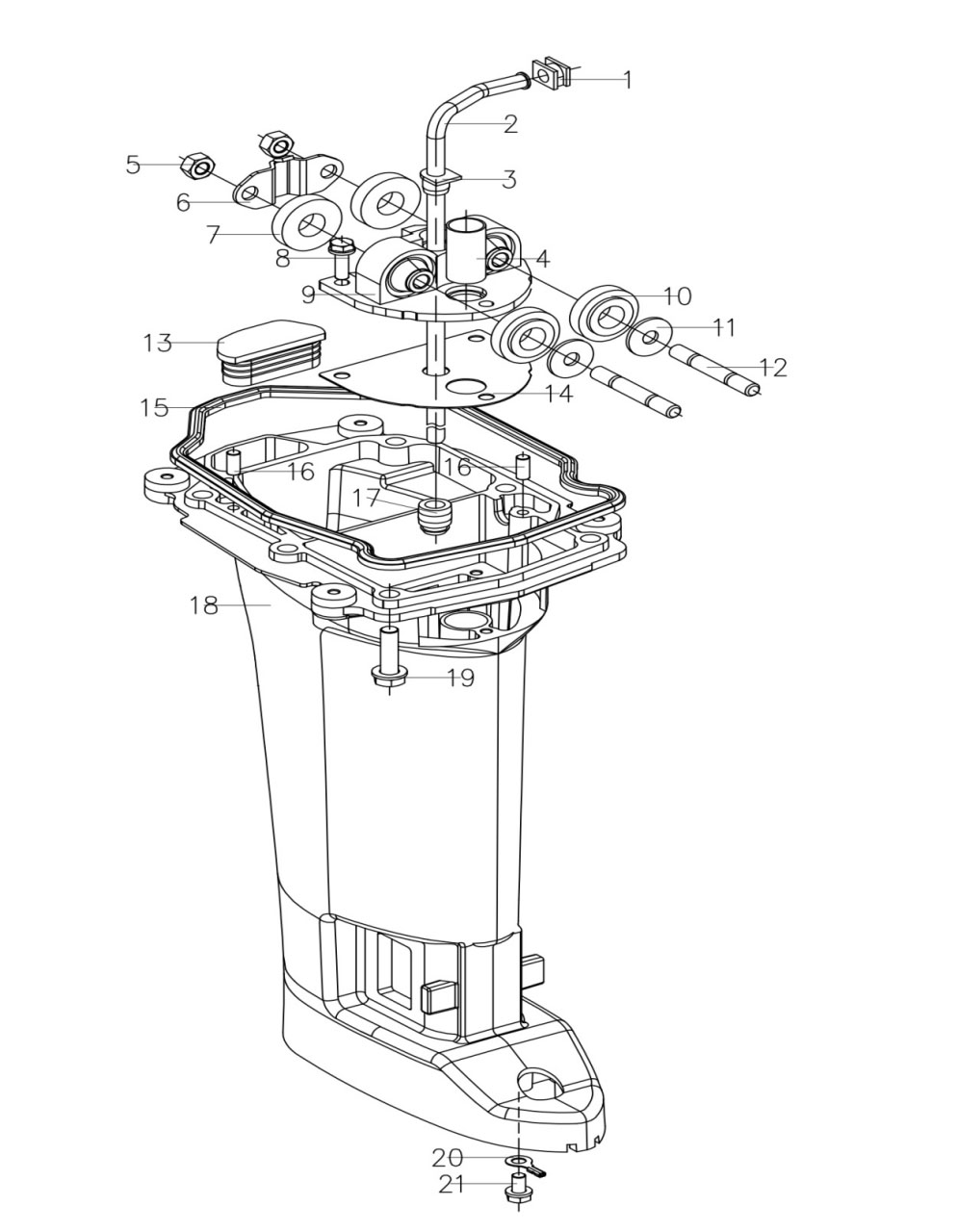

| CALON GLORIA T9.9 Upper Casing | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T15-05.00.07 | seal rubber,water pipe | 1 | 1 | 63V-44365-10 |
| 2 | T15-05.00.08-S | water pipe S | 1 | 1 | 63V-44361-01 |
| T15-05.00.08-L | water pipe L | 1 | 1 | 63V-44361-11 | |
| 3 | T15-05.00.09 | seal rubber upper,water pipe | 1 | 1 | |
| 4 | T15-00.00.04 | nylon bushing | 1 | 1 | 90387-16002 |
| 5 | GB/T6170 | hexagon nut M8 | 2 | 10 | 63V-45114-A1 |
| 6 | T15-05.00.05 | plate, damper | 1 | 1 | 63V-44526-00 |
| 7 | T15-05.00.15 | Sleeve | 2 | 2 | |
| 8 | GB/T9074.14 | bolt,with washer M6x20 | 3 | 10 | |
| 9 | T15-05.01.00 | damper assy | 1 | 1 | 63V-44514-01-5B |
| 10 | T15-05.00.14 | Sleeve | 2 | 2 | |
| 11 | GB/T96 | plane washer 8 | 2 | 4 | |
| 12 | T15-05.00.06 | bolt, damper assy | 2 | 2 | 90116-08M54 |
| 13 | T15-05.00.03 | sealing pad | 1 | 1 | 63V-45126-01 |
| 14 | T15-05.00.04 | gasket, damper | 1 | 2 | |
| 15 | T15-05.00.02 | gasket | 1 | 1 | 63V-45113-A1 |
| 16 | T20-02.00.13 | locating pin φ6X12 | 2 | 10 | |
| 17 | T15-05.00.10 | seal rubber lower,water pipe | 1 | 2 | 63V-44368-00 |
| 18 | T15-05.00.01-S | upper casing S | 1 | 1 | 63V-45111-05-4D |
| 18 | T15-05.00.01-L | upper casing L | 1 | 1 | 63V-45111-15-4D |
| 19 | GB/T9074.14 | bolt,with washer M8x30 | 6 | 6 | |
| 20 | T20-00.00.07 | cable connector | 1 | 1 | 63V-82127-00 |
| 21 | GB/T818 | screw, pan head M6x10 | 1 | 10 | |
| T15-05.00.00.00-S | Upper casing assy(S) | 1 | 1 | ||
| T15-05.00.00.00-L | Upper casing assy(L) | 1 | 1 | ||
| CALON GLORIA T9.9 Lower Casing | |||||
| REF NO. | PART CODE | DESCRIPTION(EN) | unit | PC | |
| 1 | T15-06.00.16-S | drive shaft S | 1 | 1 | 63V-45510-01 |
| T15-06.00.16-L | drive shaft L | 1 | 1 | 63V-45510-11 | |
| 2 | GB/T9074.14 | bolt,with washer M6x45 | 4 | 4 | 97080-08045 |
| 3 | T15-06.00.01 | fix plate,water pump | 2 | 2 | 63V-44328-00 |
| 4 | T15-06.00.02 | seal rubber lower,water pipe | 1 | 2 | 647-44366-00 |
| 5 | T15-06.00.03 | water pump housing(outer) | 1 | 1 | 63V-44301-00 |
| 6 | T15-06.00.04 | water pump housing(inner) | 1 | 1 | 63V-44322-00 |
| 7 | T15-06.01.00 | impeller assy. | 1 | 1 | 63V-44352-01 |
| 8 | T15-06.00.05 | woodruff key | 1 | 2 | 63V-44338-00 |
| 9 | T15-06.00.06 | O-ring | 1 | 2 | 93210-44398 |
| 10 | GB/T9074.14 | bolt,with washer M6x25 | 2 | 10 | |
| 11 | T15-06.00.07 | pad, impeller | 1 | 1 | 63V-44323-00 |
| 12 | T15-06.00.11 | oil sealing | 2 | 2 | 93101-20048 |
| 13 | T15-06.00.12 | bearing, water pump casing | 1 | 1 | 90381-14020 |
| 14 | T15-06.00.09 | sealing | 1 | 1 | |
| 15 | T15-06.00.08 | locating pin φ4*12 | 2 | 4 | 93604-12M07 |
| 16 | T15-06.00.10 | water pump seat | 1 | 1 | 63V-45331-00-5B |
| 17 | T15-06.00.13 | gasket,water pump seat | 1 | 2 | 63V-45315-A0 |
| 18 | T15-06.00.14 | sleeve, drive shaft | 1 | 2 | 63V-45536-00 |
| 19 | T15-06.00.17 | needle bearing F1420 | 1 | 1 | 93315-314V8 |
| 20 | T15-06.00.18 | bearing | 1 | 1 | 93341-41414 |
| 21 | T15-06.00.20 | pinion gear | 1 | 1 | 63V-45551-00 |
| 22 | T15-06.00.21 | nut,drive shaft | 1 | 1 | 90179-08M06 |
| 23 | T15-01.05.04 | shift rod(upper) | 1 | 1 | 63V-44143-01 |
| 24 | T20-06.00.46 | column nut | 1 | 1 | 61N-44146-00 |
| 25 | GB/T6170 | hexagon nut M6 | 1 | 10 | 93210-06ME6 |
| 26 | T20-06.00.18 | O ring | 1 | 4 | |
| 27 | T15-06.02.00-S | gear shift cam lever (S) | 1 | 1 | 63V-44150-00 |
| 28 | T15-06.02.00-L | gear shift cam lever (L) | 1 | 1 | 63V-44150-10 |
| 30 | T15-06.00.08 | locating pin φ4X12 | 2 | 10 | 93604-12M07 |
| 31 | T15-06.00.15 | lower casing | 1 | 1 | 63V-45311-01-4D |
| 32 | GB/T9074.14 | bolt,with washer M8x30 | 4 | 4 | 97075-08030 |
| 33 | T20-06.00.43 | gasket,oil plug | 1 | 2 | |
| 34 | T20-06.00.44 | oil plug | 1 | 2 | |
| 35 | GB/T820 | screw,countersunk M5x20 | 1 | 10 | 90152-05M04 |
| 36 | T15-06.00.41 | water inlet cover A | 1 | 2 | 6G1-45214-00 |
| 37 | T15-06.00.42 | water inlet cover B | 1 | 2 | 63V-45215-00 |
| 38 | GB/T889 | nut, self locking M5 | 1 | 5 | 90185-05002 |
| 39 | T15-06.00.43 | anode | 1 | 2 | 61N-45251-01 |
| 40 | GB/T9074.14 | bolt,with washer M6x30 | 1 | 10 | 95895-06030 |
| 41 | T20-06.00.43 | gasket,oil plug | 1 | 4 | 90430-08020 |
| 42 | T20-06.00.44 | oil plug | 1 | 2 | 90340-08002 |
| 43 | T15-06.00.22 | Shim | 1 | 2 | 664-45567-01 |
| 44 | T15-06.00.23 | Roller Bearings30205 | 1 | 1 | 93332-00005 |
| 45 | T15-06.00.24 | forward gear | 1 | 1 | 6E7-45560-01 |
| 46 | T15-06.00.25 | gear shift plunger | 1 | 1 | 650-45635-00 |
| 47 | T15-06.00.26 | compression spring | 1 | 1 | 90501-14M06 |
| 48 | T20-06.00.27 | clutch pin | 1 | 2 | 90250-05010 |
| 49 | T15-06.00.44 | ring, cross pin | 1 | 1 | 648-45633-00 |
| 50 | T15-06.00.28 | dog clutch | 1 | 1 | 682-45631-00 |
| 51 | T15-06.00.27 | propeller shaft | 1 | 1 | 683-45611-00 |
| 52 | T15-06.00.29 | washer,plate | 1 | 2 | 90201-17682 |
| 53 | GB/T91 | split pin φ2.5X25 | 1 | 10 | 91490-30020 |
| 54 | T15-06.00.30 | reverse gear | 1 | 1 | 6E7-45571-00 |
| 55 | T15-06.00.31 | deep groove ball bearing6005 | 1 | 1 | 93306-00501 |
| 56 | T15-06.00.32 | O-ring,housing,propeller shaft | 1 | 4 | 93210-56M80 |
| 57 | T15-06.00.33 | cap,lower casing | 1 | 1 | 683-45361-02-4D |
| 58 | T15-06.00.35 | O-ring | 1 | 4 | 93210-57M09 |
| 59 | GB/T9074.14 | bolt,with washer M6x20 | 2 | 4 | 97095-06020 |
| 60 | T15-06.00.34 | needle bearing 17BM2312 | 1 | 2 | 93315-317U2 |
| T15 | propeller | 1 | 1 | 683-45941-00-EL | |
| 61 | T15-06.00.36 | oil seal | 2 | 2 | 93101-17054 |
| 62 | T15-06.00.37 | thrust holder,propeller | 1 | 1 | 6E7-45987-01 |
| 63 | T15-06.03.00 | Internal splined assy. | 683-45941-00-EL | ||
| T15 | propeller | ||||
| 64 | T15-06.00.38 | ||||
| 65 | T15-06.00.39 | Propeller mouth | |||
| 67 | T15-06.00.40 | nut, castle | 90201-10M01 | ||
| T15-06.00.00.00-S | Lower casing assy (S) | 1 | 1 | ||
| T15-06.00.00.00-L | Lower casing assy (L) | 1 | |||
